MonoCrystalline PV modules
Our solar cells and PV technololy give stable and reliable power which gurantees for 25 years life span for less than 20% power loss
More »
Our solar cells and PV technololy give stable and reliable power which gurantees for 25 years life span for less than 20% power lossMore »
PolyCrystalline PV modules
Each of our modules meets international standard with quality and safety. Both poly and mono solar cells have high efficiency and is usable to all kinds of applications.
More »
Each of our modules meets international standard with quality and safety. Both poly and mono solar cells have high efficiency and is usable to all kinds of applications.
More »
BIPV Modules
We offer energy efficient and good quality BIPV modules. BIPV modules are used as a roof and a source of electricity of the building.
More »
We offer energy efficient and good quality BIPV modules. BIPV modules are used as a roof and a source of electricity of the building.More »

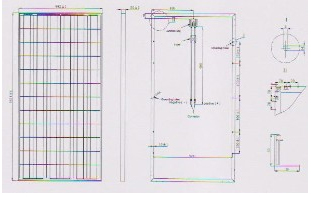

Products - Specification of MonoCrystalline PV modules
 |
||||||||||||||||||||||||||||||||||||
|
Physical Parameters:
Monocrystalline silicon solar cell : 156mm×156mm
No. of cells : 72pcs(6×12)
Dimension : 1950mm×992mm×50mm
Weight : 24kg
Tolerance : +/-3%
Electrical Parameters:
STC : Irradiance 1000W/m2 Module temperature 25℃ AM=1.5
Operating temperature : -40℃ to +85℃
 Maximum system voltage : 1000VDCEnvironmental Rating:
NOTC （Nominal operation cell temperature）: 48℃+/-2℃
Temp. Coeff. Of Isc (TK Isc) : (0.065+/-0.015)%/ ℃
Temp. Coeff. Of Voc (TK Voc) : -0.33%/ ℃
Temp. Coeff. Of Pmax (TK Pmax) : -(0. 4±0.05)%/ ℃
Max wind resistance capacity : 60m/s
Max load capacity : 200 kg/m2
Max hail diameter @ 80km/h 25mm
NOCT: Nominal operation cell temperature
 |
Saving & Creating
Clean Enviroment
Atone Energy is promoting clean power by using solar energy. Nowadays increasing greenhouse emmission is deteriorating and making the world very suffocating place to humanbeings. Thus, in this sutuation cleaner and greener world is today's need. By looking at the facts we are encouraged to bring change in the world by solar.which is clean/green technology and the energy free from greenhouse gases.
Enviroment is our life we are creating awareness for making the green world by using clean solar energy and energy efficient equipment.
Clean Enviroment
Atone Energy is promoting clean power by using solar energy. Nowadays increasing greenhouse emmission is deteriorating and making the world very suffocating place to humanbeings. Thus, in this sutuation cleaner and greener world is today's need. By looking at the facts we are encouraged to bring change in the world by solar.which is clean/green technology and the energy free from greenhouse gases.
Enviroment is our life we are creating awareness for making the green world by using clean solar energy and energy efficient equipment.
